Eigenschaften

Technische Daten

Main Material: NiCrW alloy (Ni60 based on the addition of CrC and CrB

Product Features: Wear resistance, corrosion resistance, belongs to the special alloy, hardness in HRC≥57, alloy parent full melt, improve the density, hardness.

Temperature Resistance: Temperature limit 600℃

Alloy Layer Thickness: ≧1.8mm

Alloy Layer Hardness: HRC≥57

Advantage: Elliptic flat angle process

recommendation reason: New composite liner

Liner Type: Nickel chrome tungsten composite liner

Application extruder macchine type: type 75 and above 75 can made by composite liner

Application area: Plastic manufacturing,food processing ,construction,pharmaceuticals,chemical manufacturing,recycling and so on

Hervorheben:

Rubber Particle Modification Screw Bushings

Screw Bushings for Rubber Particle Modification

Corrosion Resistant Screw Bushings

Grundinformation

Place of Origin: Jiangsu, China

Markenname: BLM

Zertifizierung: ISO 9001

Model Number: standard or customized

Zahlung und Versand AGB

Packaging Details: Packing in wooden case

Delivery Time: 60 to 75 days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: according to the customized products

Galerie

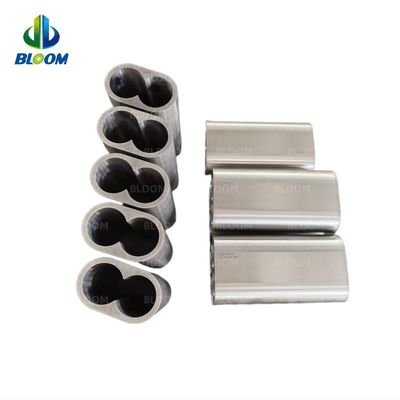

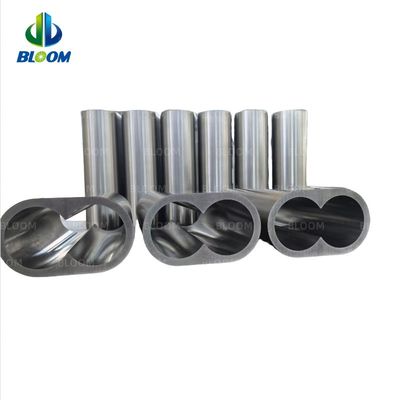

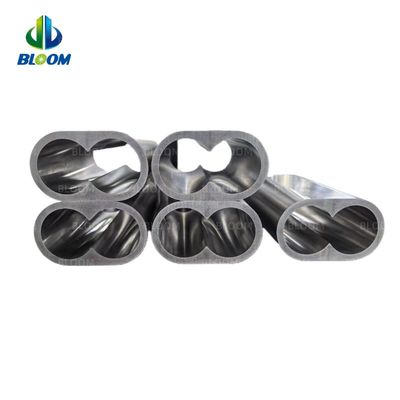

Corrosion Resistant Screw Bushings For Rubber Particle Modification Production Suitable Spare Parts

Produkt-Beschreibung

Corrosion-Resistant Screw Bushings for Rubber Particle Modification Production Suitable Spare Parts

The extruder bushing is a key accessory installed in a specific part of the extruder. It is usually located inside the barrel and fits closely with the screw. Its main function is to reduce the friction between the screw and the barrel, protect the barrel from wear, ensure that the screw rotates in a stable environment, and achieve efficient material conveying, plasticizing and extrusion processes.

Code No	Description	Materials	Alloy Thickness	Application
BLM-01	Ni-Alloy Liner	Ni-Alloy	5-20mm	Extruder machine
BLM-02	Bimetallic liner	Steel+Ni Alloy	2-3mm	Extruder machine
BLM-03	Steel Liner	Steel	5-20mm	Extruder machine

Corrosion Resistant Screw Bushings For Rubber Particle Modification Production Suitable Spare Parts 0

Question 1: Does your company have any issues with the inner walls of machine barrels or liners that come into contact with materials being not wear-resistant, and the replacement frequency of threaded components being fast, which seriously affects production efficiency?

Our solution: Using our independently developed alloy material BLM60 (Ni60Tungsten Carbide), the hardness can reach HRC62-64 Mainly used for processing liner or spray welding liner inner walls, for materials and industries that require ultra-high wear resistance.Why we choose BLM60?
BLM60, the nickel based alloy materials with excellent wear resistance and corrosion resistance have significantly improved compactness; The metallographic structure is more detailed; A significant increase in hard wear-resistant phase carbides! Thus achieving twice the wear resistance of vacuum sintered alloys; The alloy layer has been changed from an 8-shaped alloy layer to a waist shaped elliptical 8-shaped alloy layer! Sharp corners provide better wear resistance and support.
(The wear resistance test shown in the following figure)

Corrosion Resistant Screw Bushings For Rubber Particle Modification Production Suitable Spare Parts 1

Corrosion Resistant Screw Bushings For Rubber Particle Modification Production Suitable Spare Parts 3
